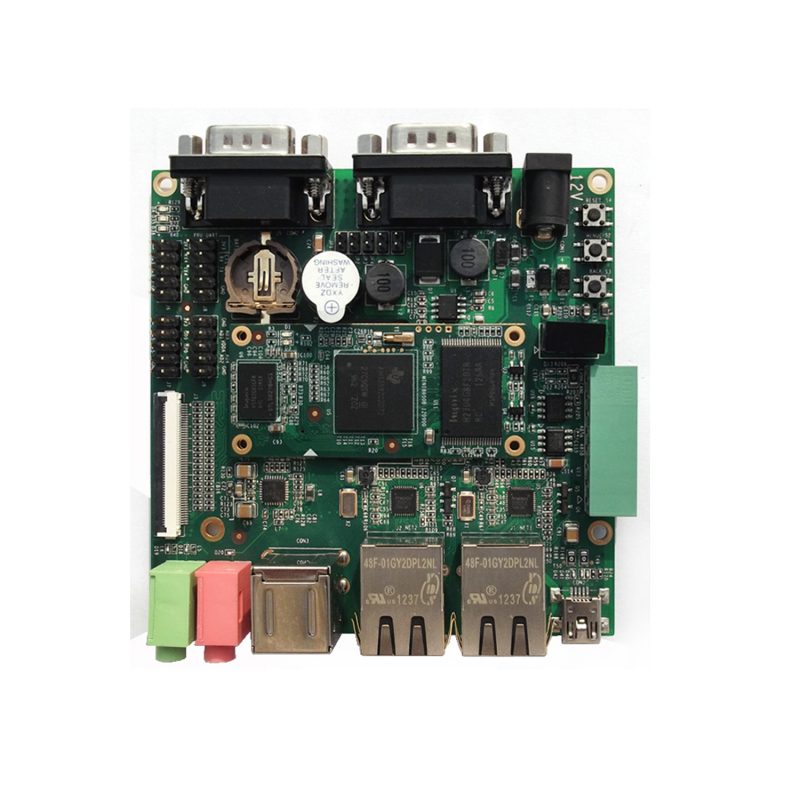

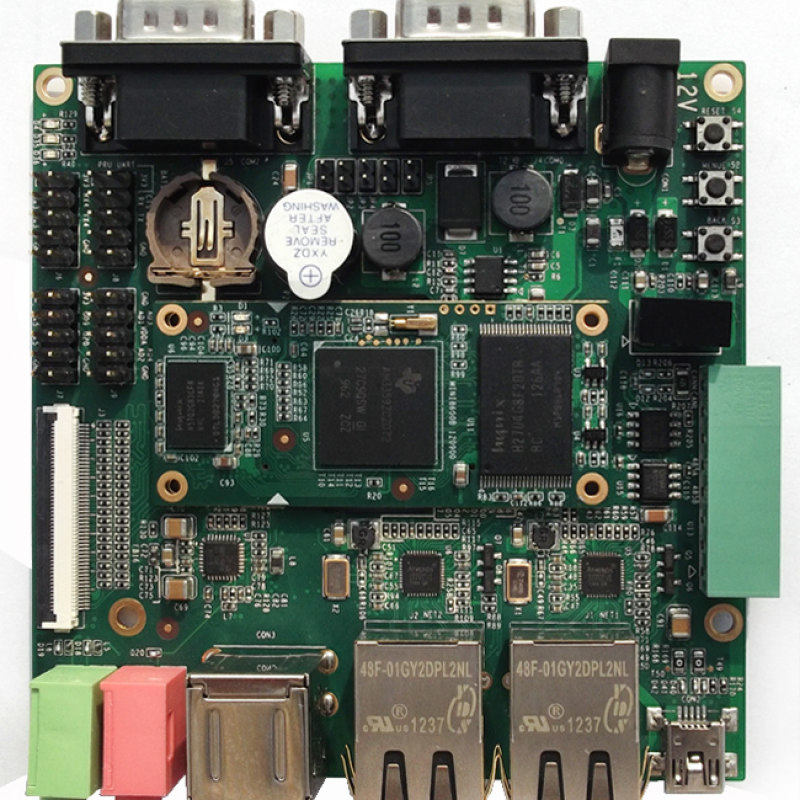

Data transfer interface:
-
Two 10/100/1000Mbps Ethernet interfaces (only one network port is supported in WinCE 7 system at this time)
-
A CAN 2.0 interface and an RS485 interface (8 Pin Phoenix Terminal Connector)
-
A USB 2.0 High-Speed OTG Portswith Integrated PHY (480Mbps, Mini USB interface)
-
Two USB 2.0 High-Speed HOST Portswith Integrated PHY (480Mbps, USB-A interface)
-
A TF card interface (SD/MMC compatible, 3.3V logic)
-
Serial port:
-
UART0, RS232 level, DB9 debug serial port
-
UART2, RS232 Level, DB9 Common Serial Port
-
UART3, 3.3V TTL level, needle alignment
-
UART4, TTL level, needle alignment
-
UART5, TTL level, needle alignment
Audio/video interface:
-
LCD/touch screen interface (24-bit data RGB full color output, 50-pin FPC connector)
-
An audio input interface (3.5mm audio interface)
-
A dual channel audio output interface (3.5mm audio interface)
Transport interface:
-
Two custom keys (MENU, BACK)
-
A reset key
LED：
-
A power indicator
-
Two user defined lights
Electrical characteristics:
-
Working temperature: 0 ° C ~ 70 ° C
-
Ambient temperature: 20% – 90%, non condensing
-
Mechanical dimension: 96mm x 96m
-
Input voltage: 12V
1 SOM-860-E
1.1 Linux 4.16
|
Items |
Notes |
|
|
OS |
Linux |
Version 4.1.6 |
|
Device Driver |
Serial |
Serial driver |
|
Rtc |
Hardware clock driver |
|
|
Net |
2*10M/100M/Gb Ethernets |
|
|
Display |
Display port (RGB TFT) |
|
|
MMC/SD |
4-bit SDIO |
|
|
eMMC |
8GB eMMC |
|
|
USB |
3 High speed USB ports (2*Host, 1*OTG) |
|
|
Audio |
Analog (headphone/MIC) |
|
|
RS485 |
1*RS485 port |
|
|
CAN |
1*CAN Bus port |
|
|
Keypad |
GPIO keyboard driver |
|
|
LED |
User leds driver |
|
|
Buzzer |
1*buzzer |
|
1.2 Linux 3.2
|
Items |
Notes |
|
|
OS |
Linux |
Version 3.2 |
|
Device Driver |
Serial |
Serial driver |
|
Rtc |
Hardware clock driver |
|
|
Net |
2*10M/100M/Gb Ethernets |
|
|
Display |
Display port (RGB TFT) |
|
|
MMC/SD |
4-bit SDIO |
|
|
eMMC |
8GB eMMC |
|
|
USB |
3 High speed USB ports (2*Host, 1*OTG) |
|
|
Audio |
Analog (headphone/MIC) |
|
|
RS485 |
1*RS485 port |
|
|
CAN |
1*CAN Bus port |
|
|
Keypad |
GPIO keyboard driver |
|
|
LED |
User leds driver |
|
|
Buzzer |
1*buzzer |
|
1.3 WINCE 7.0
|
Catalog |
Item |
Source code / binary |
|
OAL |
Boot parameter |
Source |
|
KILT(EMAC) |
Source |
|
|
Serial debug |
Source |
|
|
REBOOT |
Source |
|
|
Watchdog |
Source |
|
|
RTC |
Source |
|
|
Kernel profiler |
Source |
|
|
System timer |
Source |
|
|
Interrupt controller |
Source |
|
|
MMU |
Source |
|
|
Driver |
NLED driver |
Source |
|
GPIO/I2C/SPI/MCASP driver |
Source |
|
|
Serial port driver |
Source |
|
|
Audio driver |
Source |
|
|
NAND driver |
Source |
|
|
Display driver |
Source |
|
|
TOUCH driver |
Source |
|
|
SD/MMC/SDIO driver |
Source |
|
|
EMAC driver |
Source |
|
|
USB OTG driver |
Source |
|
|
GPIO keyboard driver |
Source |
|
|
DMA driver |
Source |
|
|
Backlight driver |
Source |
|
|
Battery driver |
Source |
|
|
RPU driver |
Source |
|
|
SDK |
powerVR DDK & SDK |
Binary & Source |
|
Categories |
Locations |
|
BSP |
\BSP\SBC8600.rar |
|
\BSP\COMMON_TI_V1.rar |
|
|
\BSP\3rdParty.rar |
|
|
\BSP\PowerVR.rar |
|
|
Example Projects |
\project\SBC8600 |
|
Example Applications |
\app\ |
|
Precompiled Images |
\Image\ |
2 MINI8600B
|
operating system |
explain |
remarks |
|
|
Linux |
BIOS |
x-loader |
NAND |
|
MMC/SD |
|||
|
FAT |
|||
|
u-boot |
NAND |
||
|
MMC/SD |
|||
|
FAT |
|||
|
Net burning image is supported |
|||
|
Kernel |
Linux-3.2.0 |
File system supporting ROM / cram / ext2 / ext3 / fat / NFS / JFFS2 / UBIFS format |
|
|
Driver support |
CAN, RS485，TFT LCD，Touch screen，NAND Flash，Debug serial port，Ethernet，USB OTG，TF card，Key，USB Device, USB host,LED，RTC，Audio input/output |
||
|
Android 2.3 |
Kernel |
Linux-3.2.0 |
Gingerbread |
|
Driver support |
TFT LCD，Touch screen，NAND Flash，Debug serial port，Ethernet，USB OTG，TF card，Key，USB Device, USB host,LED，RTC，Audio input/output |
||
|
WinCE 7 |
BIOS |
x-loader |
|
|
Support NAND startup |
|||
|
Support TF startup |
|||
|
e-boot |
|||
|
Support NAND startup |
|||
|
Support TF startup |
|||
|
OAL |
OAL module |
Boot parameter |
|
|
KILT(EMAC) |
|||
|
Serial debug |
|||
|
REBOOT |
|||
|
Watchdog |
|||
|
RTC |
|||
|
Kernel profiler |
|||
|
System timer |
|||
|
Interrupt controller |
|||
|
MMU |
|||
|
Drivers Support |
Debug serial port, RTC, Ethernet, NAND Flash, TFT LCD, Touch screen, TF card, USB Device,Audio input/output, RS485, NLED, Keypad, PRU，USB host，USB Device |
||
|
PowerVR (2D/3D) DDK & SDK |
|||
http://wiki.emtop-tech.com/display/EMTOPHOMEPAGE/SOM-860-E
===Ordering And Pricing==
Please contact with sales@emtop-tech.com
