Memory：
- 2GB 16bit DDR3/3L SDRAMs
- 8GB eMMC
- 32MB QSPI flash
IOs for Serial Communication:
- UART * 6
- SPI * 2
- I2C * 3
- CAN * 2
IOs for High Speed Communication
- USB 2.0 * 1, USB 3.0 * 1，4 port-hub
- PCIE * 1
- mSATA SSD * 1
- GPMC * 1
IOs for Multimedia
- 24-bit LCD video input * 1,8-bit video input * 1
- HDMI 1.4a interface * 1,24-bit LCD video output * 1
- McASP * 2
Other Peripherals
- JTAG interface
- GPIO * 20
- MMC interface * 2
- 10M/100M/1000M RGMII * 2
- LED * 2
- PWM * 4

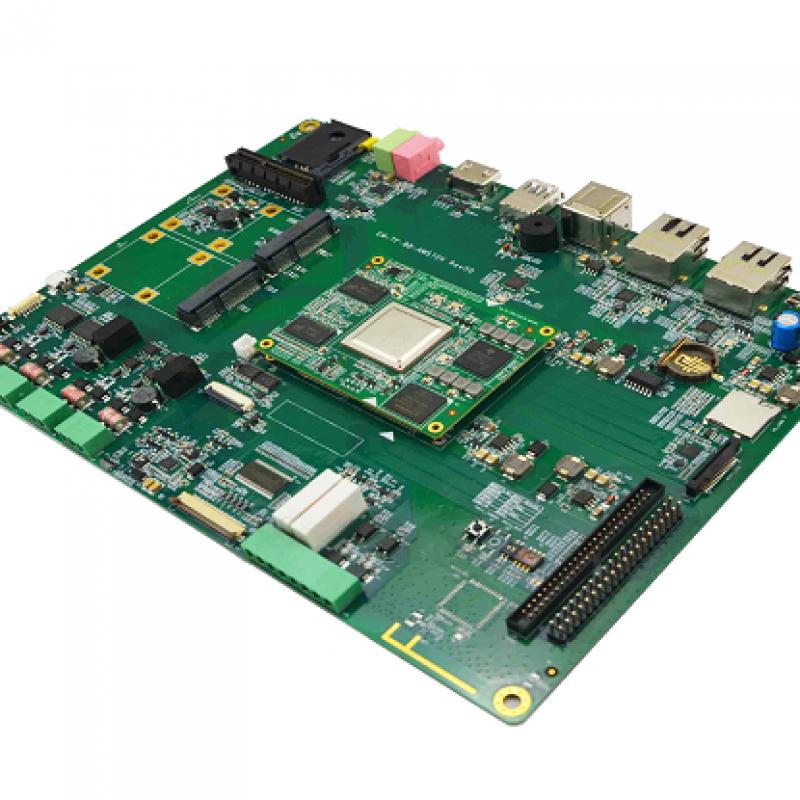

EVK-AM5728 is a self-developed SOM-AM5728 core board, which is designed with 4-layer PCB. The whole system is oriented to medical instruments, video surveillance, industrial control, communication and other fields. It is an evaluation board based on Ti am572x series SOC. In the compact design, em-tf-bb-am5728 provides rich peripheral interface resources for em-tf-som-am5728 (Gigabit Ethernet interface, USB interface, HDMI interface, audio interface, PCIe interface, mini PCIe interface, msata interface, LCD interface, camera interface, micro SD card, can interface, RS485, Dido interface). In addition, GPMC, SPI, I2C, UART, GPIO and other interfaces are led out through 25×2 and 20×2 double row pins respectively to meet the needs of customer evaluation, with flexible customization.
BLOCK DIAGRAM：
Electrical characteristics
- Working temperature: – 20 ~ 85 ° C
- Power supply: 7-28v (wide range power input)/ 12V@2A (power adapter)
- Working humidity: 20% – 90% (no condensation)

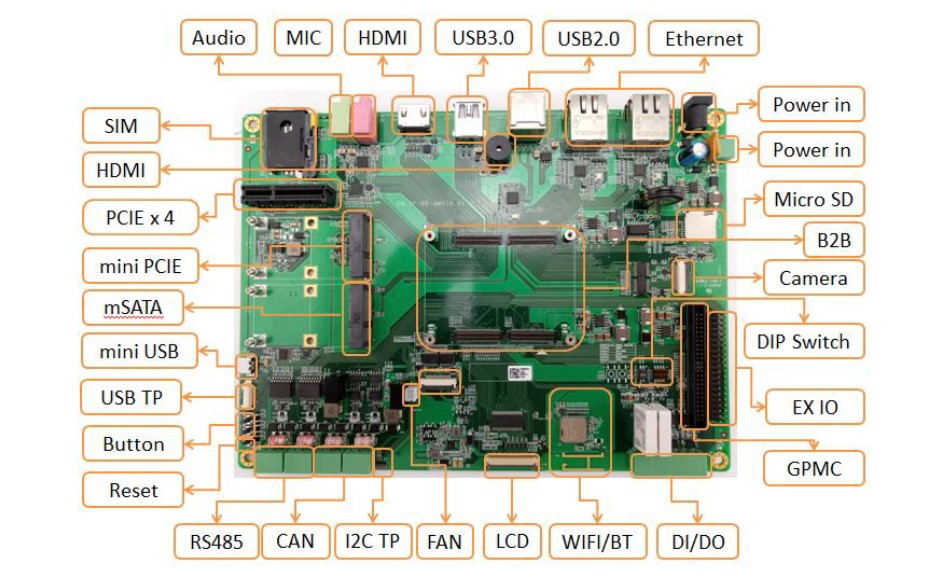

Interface:
- 2X round hole DC power interface + 1x2pin 3.81mm Phoenix terminal
- 2X Gigabit Ethernet interface (RJ45 interface)
- 2X USB2.0 host high speed transmission interface
- High speed transmission interface of 1 x USB3.0 host
- 1 x HDMI interface
- 1X line out interface
- 1 x mic interface
- 1X SIM card interface
- 1X pciex4 interface
- 2X Mini PCI interface
- 1 x debug serial port (Mini USB interface)
- 2X RS485 interface
- 2X can interface
- 2X parallel 8-bit digital camera interface
- 1 x LCD interface (with I2C / USB2.0 touch interface)
- 2 xdido interface
- Interface of TF Card
- 2X 25 pin GPMC interface
- 2X 20 pin extension interface (extending SPI, I2C, UART and other signals)
- 2X user defined keys
- 1 x reset button
- 2X boot dial switch
- 1xrtc battery interface
- 1x2pin core board cooling fan interface
Software Feature:
- U-Boot version: 2017.01
- Kernel version: 4.9.28
- Evaluaton image Arago
- Qt 5.5.1 Library
- MatrixBox desktop demo
- eMMC(default)or Micro SD boot
- LCD /LVDS and HDMI display
- Audio output & Micphone
- HDMI audio output
- 2 Gigabit Ethernet (RJ45)
- 2 CAN port
- 2 high-speed USB2.0 Host and 1 usb3.0 Host
- 2RS485 port and 1 USB-UART debug port
- External interfaces (I2CX. UART,SPI ,SATA,PCIE and GPIO)
- RTC clock
- WIFI(2.4G/5G)& Bluetooth BR/EDR/BLE
- 12 bit digital camera
- 4G
Software documents：
| Document | Description |
| EM-TF-EVK-AM5728-ReleaseNote-Vxx.pdf | Release Note |
| EM-TF-EVK-AM5728-UserManual-Vxx.pdf | User Manual |
| EM-TF-EVK-AM5728-DevelopmentGuide-Vxx.pdf | Development Guide |
Source Code list：
| Linux source code | Description |
| linux_4.9.28_xxx.gz | Linux kernel source code: 4.9.28 version |
| u-boot_2017.01._xxx.tar.gz | u-boot source code: 2015.04 |
Shippment image：
| LinuxShipmentImage | Description |
| EM-TF-EVK-AM5728-TI-ShipmentImage-SDCard-Vxx.rar | Arago image with firmwares, SD Card Image |
| EM-TF-EVK-AM5728-TI-ShipmentImage-EMMC-Vxxx.rar | Arago image with firmwares, EMMC Image |
Linux Tools：
| Linux Tools | Description |
| gcc-linaro-6.2.1-2016.11-x86_64_arm-linux-gnueabi.tar.xz | Gcc compiler for u-boot, kernel and applications |
