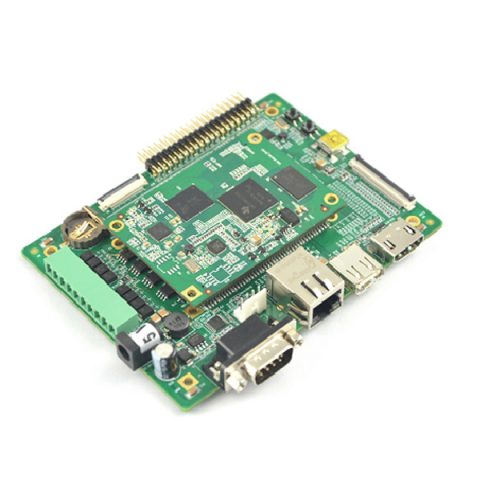

SOM-AM335x-PM Single Board Machine (Model: SBC-PH8700)

Summary:

The SOM-AM335x-PM Core Board Basic Edition Assessment Kit (Model: SBC-PH8700, hereinafter referred to as SBC-PH8700) consists of SOM-AM335x-PM Core Board and BB-SPH1800 Base Assessment Base Panel/Carrier Panel. It is a TI-based computer platform for highly efficient embedded processing of AM335X (ARM Cortex A8).It is the most commonly used AM3358 processor (1GHZ), 512MB DDR3L, 4KB EEPROM and 4 GB EMMC core system in the onboard industry, providing high performance and high energy efficiency.With a compact body size design, there are rich interfaces (gigabit network interface, USB interface, LCD interface, camera interface, HDMI interface, Micro SD card, RS232 interface, CAN interface, RS485 interface).In addition, rich signal interfaces such as I2S, UART, MMC, Gigabit network can also be derived through the on-board 40PIN double-row pin interface, which provides high-quality solutions for industrial control, medical equipment, experimental instruments and other application scenarios.SBC-PH8700 is a compact version of the development board, which reduces costs for customers, shortens development time and enables products to enter the market faster.The details of the core board can be referred to SOM-AM335x-PM.

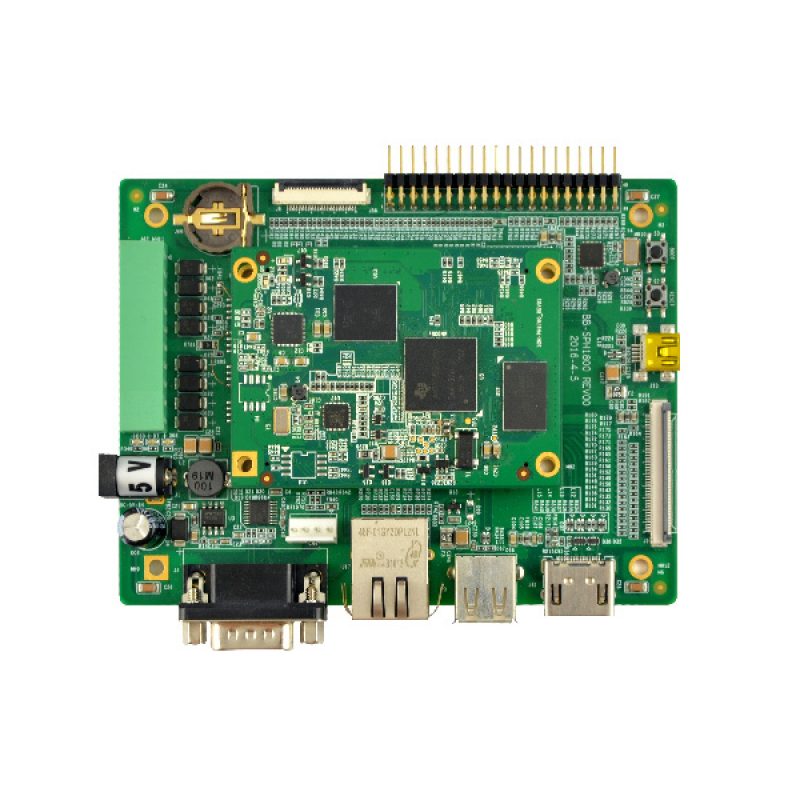

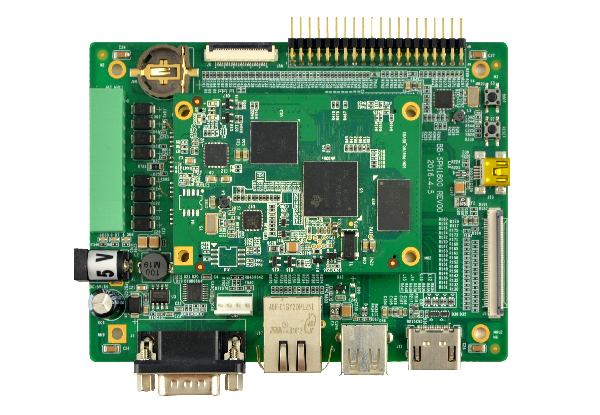

Core Plate + Base Plate BB-SPH1800

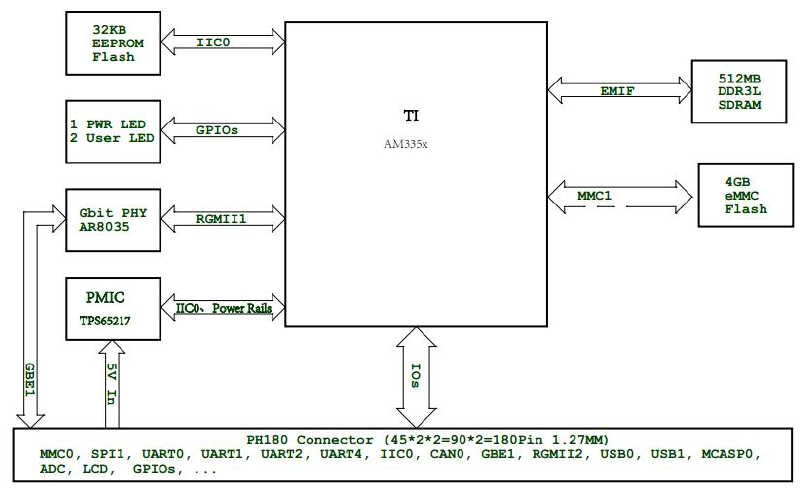

Core Processor System Diagram:

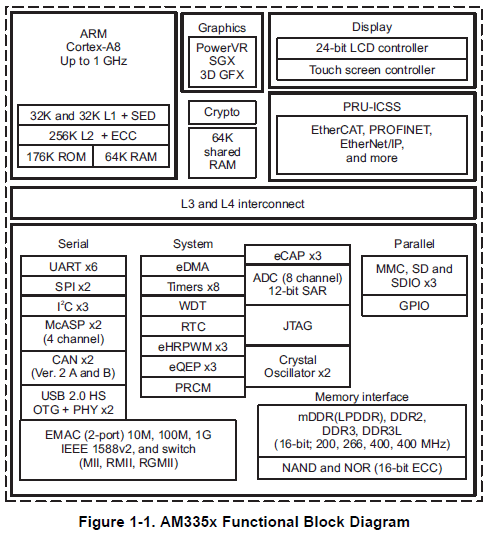

System Diagram:

hardware resource

Introduction to bb-sph1800 basic evaluation base plate:

Bb-sph1800 is a simplified version of Intel’s som-ph8700 / ph8800 application board. The whole system is oriented to medical instruments, video surveillance, industrial control, communication and other fields, and is based on Ti am335x / am437x series SOC. In the compact design, bb-sph1800 provides abundant peripheral interface resources for som-ph8700 / ph8800 (gigabit network interface, USB interface, LCD interface, camera interface, HDMI interface, micro SD card, RS232 interface, can interface, RS485 interface). In addition, I2C, I2S, UART, MMC, Gigabit Ethernet and other interfaces are also introduced through the on-board 40pin double row pin.

Communication interface:

• A DB9 RS232 communication serial port
• 1 12 bit digital camera interface
• One channel Gigabit Ethernet interface (RJ45 interface)
• Two channel RS485 interface
• One channel USB2.0 host high speed transmission interface
• 1-way USB OTG interface
• 1 TF card interface
• One 40 pin expansion interface (expanding I2C, I2S, UART, MMC, Gigabit network, etc.)

 Debug interface:

• One onboard 4Pin UART debugging serial port

Audio and video interface:

• 24bit true color LCD interface (including 4-wire touch screen interface)
• HDMI interface

Other interfaces and buttons:

• Power interface (+ 5V round hole DC power interface)
• Reset button, boot button
• RTC real time clock

RoHS compliant

Bb-sph1800 electrical characteristics:

• Working temperature: 0 ~ 70 ° C (commercial)
• Power supply: 5V / 4A (power adapter)
• Ambient humidity: 20% – 90% (no condensation)
• Product size: 120 mm × 90 mm
• PCB specification: 4-layer board design

Debug interface:

• 1 onboard 4Pin UART debugging serial port

Audio and video interface:

• 24bit true color LCD interface (including 4-wire touch screen interface)
• HDMI interface

Other interfaces and buttons:

• Power interface (+ 5V round hole DC power interface)
• Reset button, boot button
• RTC real time clock

Software：

application area

• Portable data terminal
• Measuring instrument
• Financial POS terminal
• Safety protection system
• Industrial control
• signal communication
