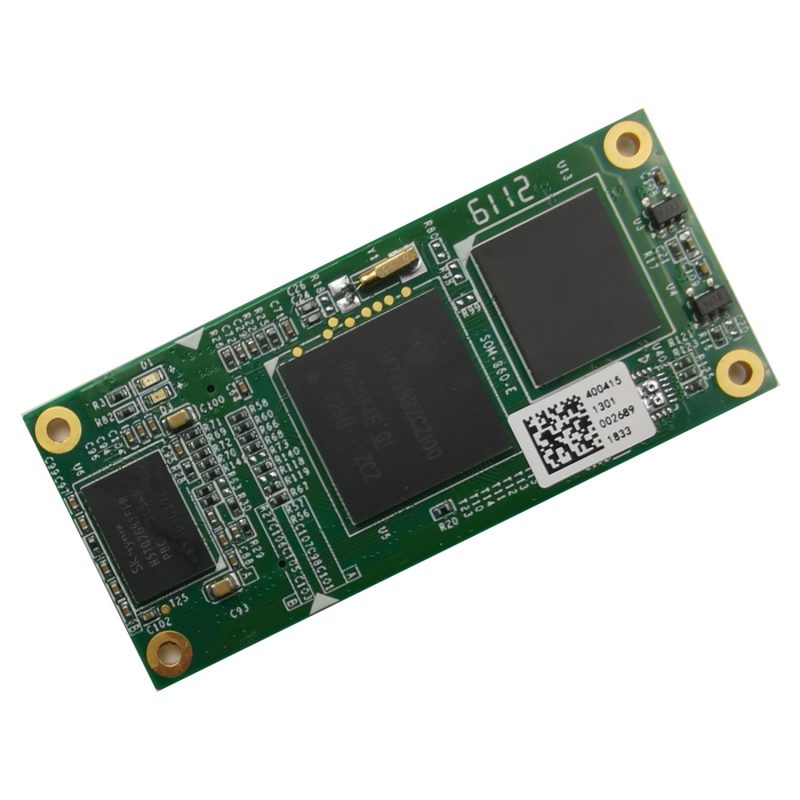

• SOM-860-E

[Hardware Overview:]


  •  Mechanical Parameters

    o Working Temperature: 0°C – 70°C

    o Humidity Range: 20% – 90%

    o Dimensions: 60mm x 27mm

    o Stacking Height:1.5mm

    o Input Voltage: 3.3V

  • Processor

    o ARM Cortex-A8 32-Bit RISC Processor up to 1GHz

    o NEON™ SIMD Coprocessor

    o SGX530 3D Graphics Engine

    o Up to 24-Bit Data Output, resolution up to 2048 × 2048

  • Memories

    o 512MByte DDR3L @ 400MHz

    o 8GB eMMC

  • Interfaces

    o One channel GMII interface

    o Parallel LCD interface

    o 16bit GPMC interface

    o Four channel UART interface

    o Two channel CAN interface

    o USB Host

    o USB OTG

    o Eight channel ADC inputs

    o SPI interface

    o I2S interface

    o SDIO interface

  • Data Transfer Interfaces

      o Serial Ports

          -UART0, 2 line serial port, TTL Logic

          -UART1, 2 line serial port, TTL Logic

          -UART3, 2 line serial port, TTL Logic

          -UART4, 2 line serial port, TTL Logic

      o USB Ports:

        -1 x USB2.0 OTG, 480Mbps

        -1 x USB2.0 HOST, 480Mbps

      o MMC card interface port by GPMC Interface

      o 1 channel GMAC

      o 1 channel I2C interface

      o 1 channel CAN bus



[Software Overview:]


Items Notes
OS Linux Version 4.1.6
Device Driver Serial Serial driver
Rtc Hardware clock driver
Net 2*10M/100M/Gb Ethernets
Display Display port (RGB TFT)
USB 3 High speed USB ports (2*Host, 1*OTG)
Audio Analog (headphone/MIC)
RS485 1*RS485 port
CAN 1*CAN Bus port
Keypad GPIO keyboard driver
LED User leds driver
Buzzer 1*buzzer
