• MINI6045

Product introduction

Feature summary:


-based tmel AT91SAM9G45 (ARM 926EJ-STM, main frequency 400MHz) industrial processor

-On-board 256MB DDR2 SDRAM, 256MB NandFlash, 4MB DataFlash

-Compatible with Atmel AT91SAM9M10 processor

-External Expanded Precision RTC

– Extend LVDS signal to support large LCD

– Pre-installed Linux 2.6.30, WinCE 6.0 operating systems, provide related peripheral driver source code and test programs

– It can work steadily at a wide temperature ranging from -40 ~85 C to meet the needs of industrial applications

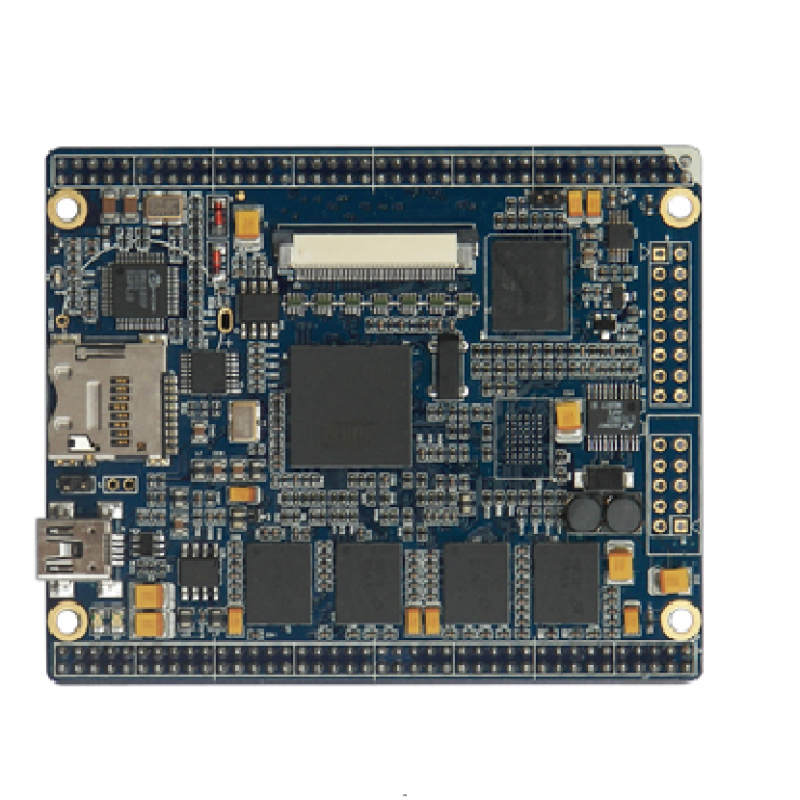

 Mini6045工业级核心板,Atmel AT91SAM9G45核心



Mini6045 industrial core board is an embedded core board for industrial automation, intelligent instrument, network terminal, automotive electronics and other fields.On-board 256MB DDR2 SDRAM, 256MB NandFlash, 4MB DataFlash, 2K EEPROM, Extended Precision RTC (error 1Min per year), 1 TF card interface, hot plug, 1 10/100MB Ethernet port, 1 high-speed USB2.0 OTG interface, 1 24-bit LCD interface, PIN TO PIN compatible with AT91SAM9M10.

Mini6045 pre-installs the Linux 2.6.30/WinCE 6.0 operating system and provides related peripheral driver files and source code. Later, we will launch the matching soleplate SBC6045 for user evaluation. Users can also adjust the function of the product according to their own customized characteristics of the soleplate hardware, so that they can develop their own products faster and achieve rapid product listing.

Hardware features

Processing unit:

• Atmel AT91SAM9G45 Industrial Processor (ARM926EJ-Core), 400MHz

• 256MB DDR2 SDRAM,256MB NandFlash,4MB DataFlash

• 2Kbit EEPROM

• Extended precision RTC, external backup battery


Peripheral interface:


• 1-way TF card interface, hot-plug support

• 1 Debug debugging serial port

• 1-way 24bit LCD interface

• 1 High Speed USB2.0 OTG Interface

• 1-way 10/100MB Ethernet port

• Functions through 160PIN double-row straight pin pins are: Mini6045 industrial single board PIN foot definition

8-bit single channel LVDS interface (24-bit color)

Port Differential Line (multiplexed with the above interface)

DEBUG Serial Port (multiplexed with the above interface)













Electrical characteristics:


• Industrial ambient temperature: -40 ~+85 C

• Ambient humidity: 0%~90%, non-condensation

• Power consumption: 3W (with 4.3 inch screen), 1.65W (without screen)

• Machine size: 82mm * 67mm

• PCB specification: 8-layer design




Software Features


Linux system features:


• Linux version: Linux 2.6.30

• Compiler version: gcc-3.4.5-glibc-2.3.6

• Support booting Linux OS from Nand Flash

• Support for Data Flash, Nand Flash, and network downloads, burn kernels and file systems

• Graphics library support: Qt4.4.2

• Support for file systems: ROM/CRAM/EXT2/EXT3/FAT/NTF/JFFS2/YAFFS2 and many other file systems

• Drive support: LCD, Touch Screen, Serial, RTC, Ethernet, Watchdog, MMC/SD, USB OTG, EEPROM



WinCE System Features:


• WinCE version: WinCE 6.0

• Support booting from NandFlash

• Update method: support network, SAM-BA download update system

• Drive support: LCD, Touch Screen, Serial, RTC, Ethernet, Watchdog, MMC/SD, USB OTG, EEPROM
