SOM-PH8700
  • SOM-PH8700
  • SOM-PH8700

SOM-AM335x-PM(Part NO:SOM-PH8700)



Overview:

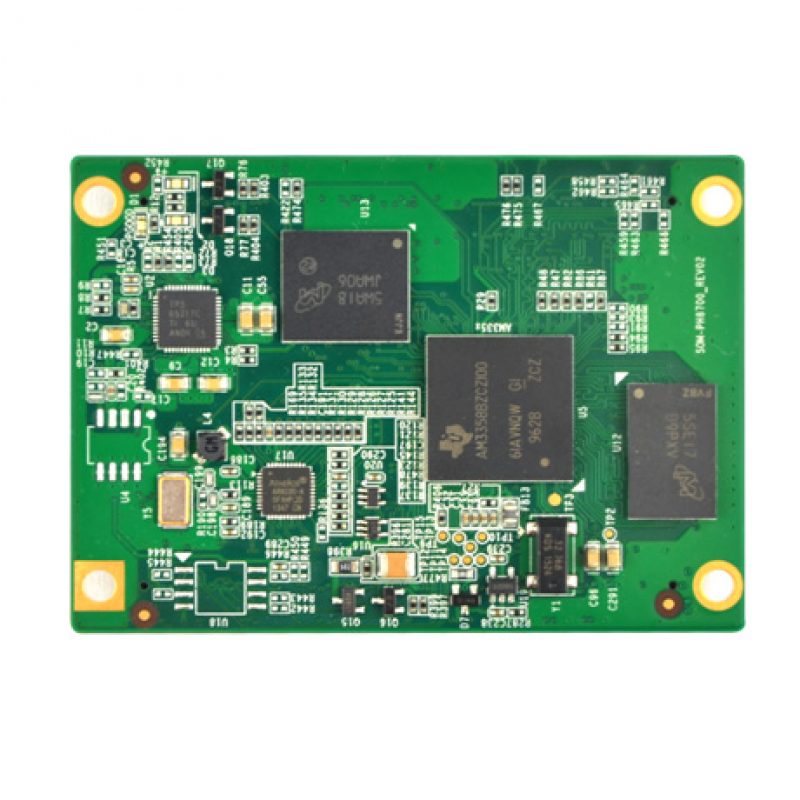

A highly cost effective system on module which serves as a building block and easily integrates into any embedded solution based on high performance TIs' Sitara AM335x family of processors. SOM-AM335x-PM (Part NO: SOM-PH8700) integrates an AM335x (AM3358) processor and external memory and can be easily connected to an expansion board.

SOM-AM335x-PM

SOM-AM335x-PM

System block diagram:

SOM-AM335x-PM

Hardware Features:


  Processor/Memory:

  • AM335x (AM3358,324 contacts BGA)

  • DDR3 4Gb /32 Meg x 16 x 8 banks

  • eMMC 4GB 8-bit data

  • 4KB EEPROM

  I/Os/Interfaces:

  • MMC data bus×1

  • SPI×1

  • I2C×1

  • UART×4 (including a debug interface)

  • USB×2

  • MCASP audio port×1

  • LCD port×1

ADC port×8 (port 0~3 for resistive touchscreen)

  • GPMC×1

  • User-defined LED×2

  • 1000M Ethernet PHY ×1

  • Battery management×1

  • Supports 24MHz crystal oscillator and 32.768 kHz clock frequency

  • SOM90 connector×2

  • RoHS compliant



  Electrical Features:

  • Operating temperature:0~70°C(commercial)、-40~85°C(Industrial )

  • Input voltage:5V

  • Operating humidity:20% ~ 90%(no condensation)

  • Main board size:70 mm×50 mm

  • PCB specifications:8 layer design

Software Features:


Items

Notes

Operating System

Default root file system used by debian

Drivers

Serial interface

Serial interface driver

RTC

Hardware clock driver

Ethernet

10/100/1000M IEEE 1588

Display

DVI driver

MMC/SD

SD2.0 interface and eMMC driver

USB

High-speed USB interface driver (OTG×1, HOST×1

LED

User-defined LED driver

Applications:


  • Industrial Control

  • Smart Appliance

  • Medical Equipment

  • Alternative Energy Device

  • Intelligent Display Terminal

  • Blood Analyzer

  • Robotic

  • Charging Station
