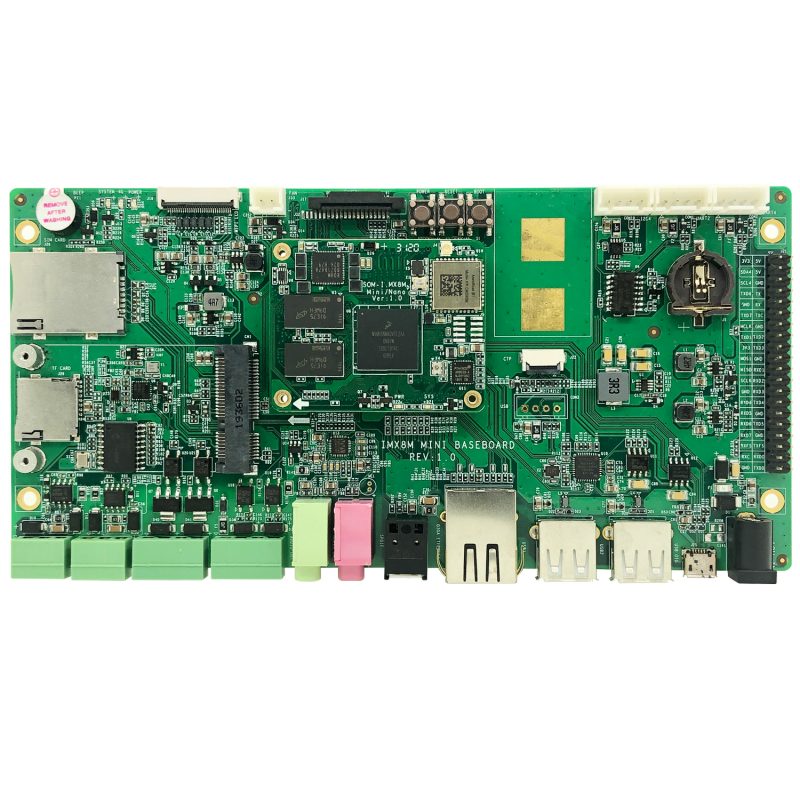

Feature：
- Quad-core ARM Cortex-A53,Plus Cortex-M4,Reserve Jtag;
- On-board 2GB DDR4,16GB eMMC,64MB SPI FLASH;
- On-board AzureWave AW-CM256SM WiFi / Bluetooth;
- On-board Gigabit Ethernet PHY;
- On-board ROHM Power Management IC (PMIC);
- Yocto Linux, Debian Linux BSP with source code;
- Based board SCH And PCB Design files （Allegro format）;
- Comes with user manual, ready-made system;

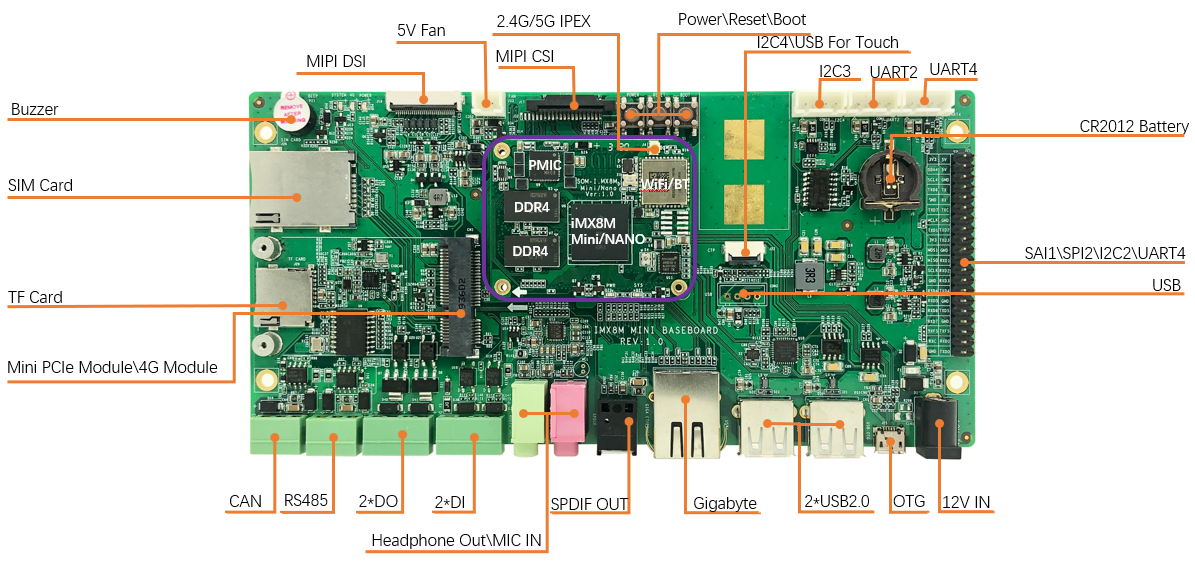

Interface：
- USB0 Host x 2
- USB OTG x 1
- 12V Power IN x 1
- Up to 77xGPIO (including SPI,I2C,PWM,UART,SAI, and SDIO)
- USB 2.0 Host (4 Pin Connector) x 1
- UART:
- UART2 (TTL, For Debug)
- UART3 (TTL, For User)
- UART4 (TTL, For User)
- I2C x 3
- USB Touch x 1
- MIPI-CSI-2 x 1
- Fan 5V port x 1
- MIPI-DSI x 1
- Buzzer x 1
- SIM Card x 1
- TF Card x 1
- Mini PCIE Interface x 1, For 4G module and PCIE module
- CAN Bus x 1
- RS485 Bus x 1
- Input Terminal x 2 PIN (With Isolation)
- Output Terminal x 2 PIN (With Isolation)
- Headphone Output/MIC In x 1
- SPDIF Out x 1
- 1xGigabit Ethernet on-board
SYSTEM ON MODULE:
- Size: 50x 40 x 3 mm
- PCB Parameter：8 layer design, lead-free soldering process
- Weight: 12g

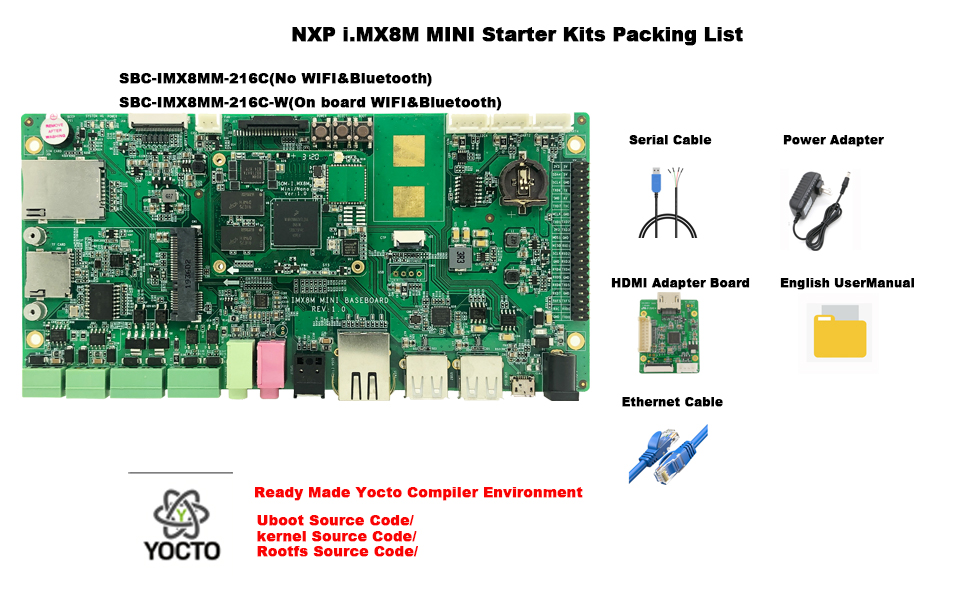

Packing List：
- SOM-IMX8M-MINI
- Carrier Board
- Serial Cable
- Ethernet Cable
- Power Adapter
- MIPI To HDMI/LVDS Adapter
| Options | SBC-IMX8MM-216C, SBC-IMX8MM-216C-W |
|---|
