Overview

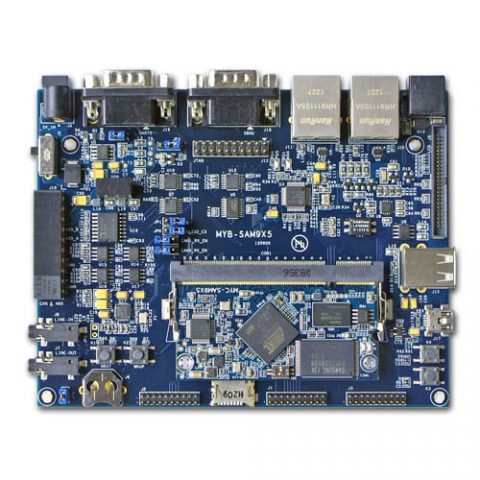

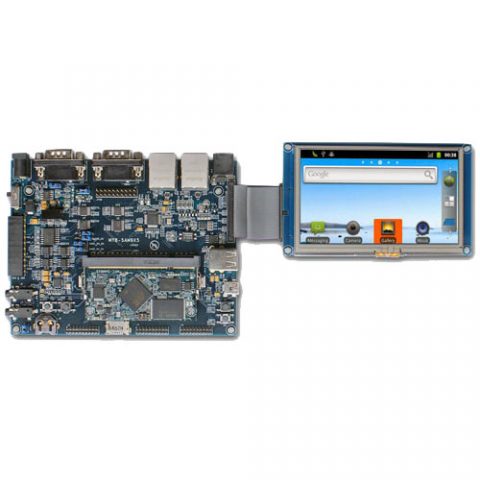

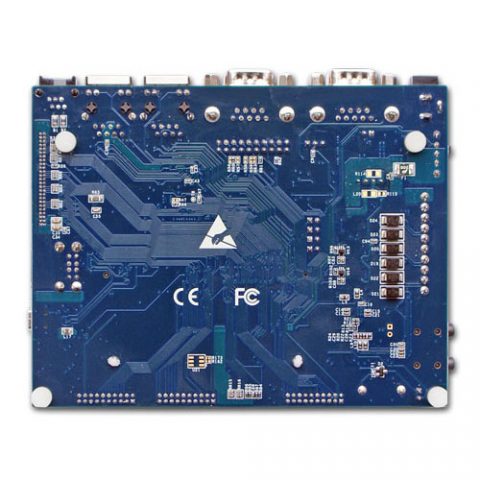

The Atmel MBC-SAM9X25 ARM9 Board is an ARM embedded board produced by Embest, integrating the ATMEL ARM926EJ-S-based processor AT91SAM9X25, operating at 400MHz frequency, and can support WinCE and Linux. The board has 128MB DDR2 SDRAM, 256MB NandFlash, 4MB DataFlash, 64KB Serial EEPROM, 128B one-wire EEPROM.

SAM9X5 MCU family is designed to complement the power of the ARM926 core, these flexible devices deliver a rich combination of peripherals in a highly integrated design. The high bandwidth architecture is based on a multi-layer bus matrix, multiple DMA channels and an External Bus Interface to ensure internal and external data flows with minimum processor overhead. Integrated power management techniques preserve the power budget and reduce BOM cost.

Key Applications: Building Automation, Gateways & Medical.

Features

  • ARM926EJ-S™ ARM® Thumb® Processor running at up to 400 MHz @ 1.0V /- 10%

  • 16 Kbyte Data Cache, 16 Kbyte Instruction Cache, Memory Management Unit

  • One 64 KByte internal ROM embedding bootstrap routine: Boot on NandFlash, SDCard, Dataflash or serial dataflash

  • Programmable order

  • One 32 KByte internal SRAM, single-cycle access at system speed

  • External 128MB DDR2 SDRAM, 256MB NandFlash, 4MB DataFlash, 64KB Serial EEPROM, 128B one-wire EEPROM, 10/100Mbps Ethernet MAC controller(only for MBC-SAM9X25-P)

Ships With

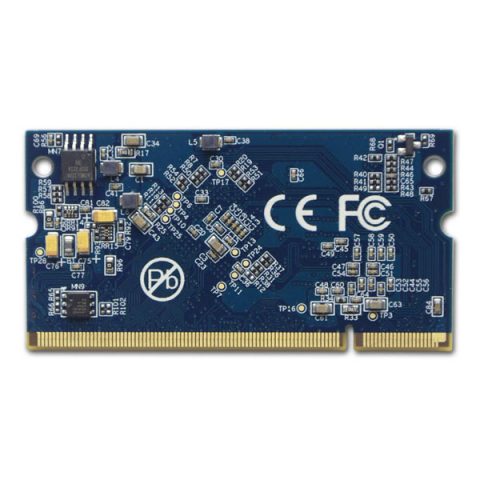

  • One MBC-SAM9X25 Core board

Downloads

Applications Library

Application Library for USB OTG-like Connector Implementation (patch) (zip)

Sample code

Source Code for NAND Flash Support on AT91SAM9 Microcontrollers (zip)

Technical Docs

Application Note

Application Note for AT91SAM9 LCD Controller (pdf)

Application Note for HSMCI on SAM9G15/G25/G35/X25/X35

Microcontrollers (pdf)

Application Note for USB OTG-like Connector Implementation (pdf)

Data Sheet

Datasheet for SAM9X25 (pdf)

Reference Manual

Technical Reference Manual for ARM926EJ-S (pdf)

User Manual/Guide

User Manual for MBS-SAM9X5 Single Board Computers (pdf)

MPN

Description

MBS-SAM9X25

Based Board and Core Processor Module based on Atmel SAM9X25

MBS-SAM9X35

Based Board and Core Processor Module based on Atmel SAM9X35

MBS-SAM9G15

Based Board and Core Processor Module based on Atmel SAM9G15

MBS-SAM9G25

Based Board and Core Processor Module based on Atmel SAM9G25

MBS-SAM9G35

Based Board and Core Processor Module based on Atmel SAM9G35

MBC-SAM9X25

Only Core Processor Module based on Atmel SAM9X25

MBC-SAM9X35

Only Core Processor Module based on Atmel SAM9X35

MBC-SAM9G15

Only Core Processor Module based on Atmel SAM9G15

MBC-SAM9G25

Only Core Processor Module based on Atmel SAM9G25

MBC-SAM9G35

Only Core Processor Module based on Atmel SAM9G35

MBC-SAM9G45

Only Core Processor Module based on Atmel SAM9G45
