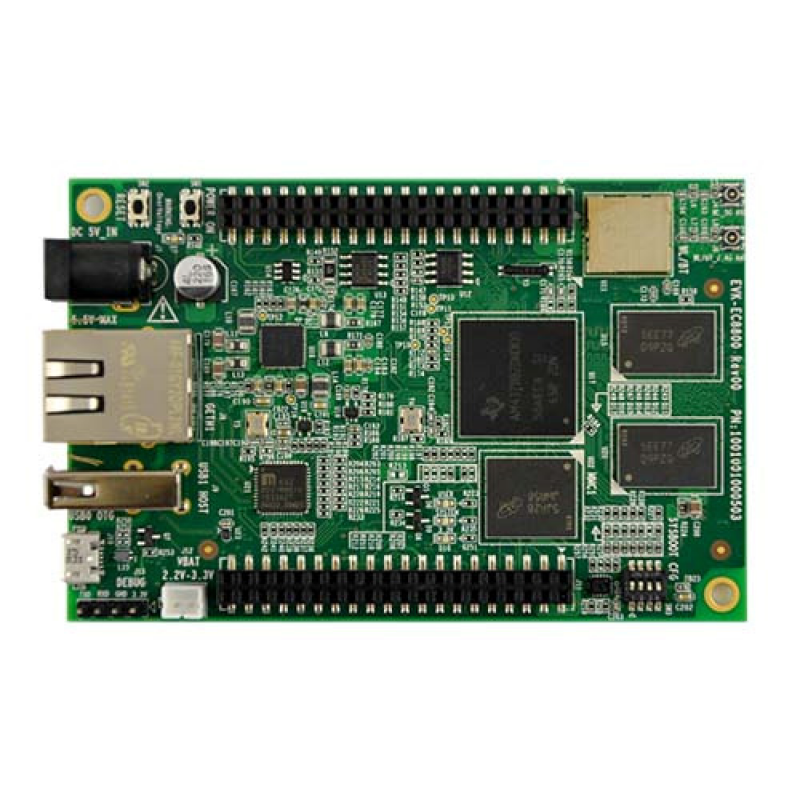

• SBC-EC8800

The SBC-EC8800 is a single board computer designed around TI’s high performance AM437X processor with an ARM Cortex-A9 core. This 1GHz processor features 3D graphics capabilities for enhanced user interface and PRU-ICSS software for industrial ethernet protocols and position feedback control. Despite the compact body size, the SBC-EC8800 provides plenty of peripheral interface and connectivity options, with gigabit Ethernet, USB 2.0 (host, OTG), LCD, camera, MicroSD card, Wi-Fi, Bluetooth (optional) and DEBUG. The on-board 80 pin (40 x 2) GPIO conenctor extends the signal interface possibilities even further to I2C, UART, RGMII, SPI, MCASP, ADC, PWM, CAN and RS485 interfaces.

  • LCD interface supports up to 24bit LCD display (WXGA)

  • Onboard MT41K256M16HA-125:E 1GB DDR3L device

  • 4GB EMMC, 32MB QSPI and 32KB EEPROM onboard memory

  • Supports Embest 4.3inch and 7inch LCD

  • Supports 12bit camera

  • MicroSD card for storage extension

  • Main board size is 100mm x 65mm


Embedded Design & Development, Industrial, Automation & Process Control, Medical
