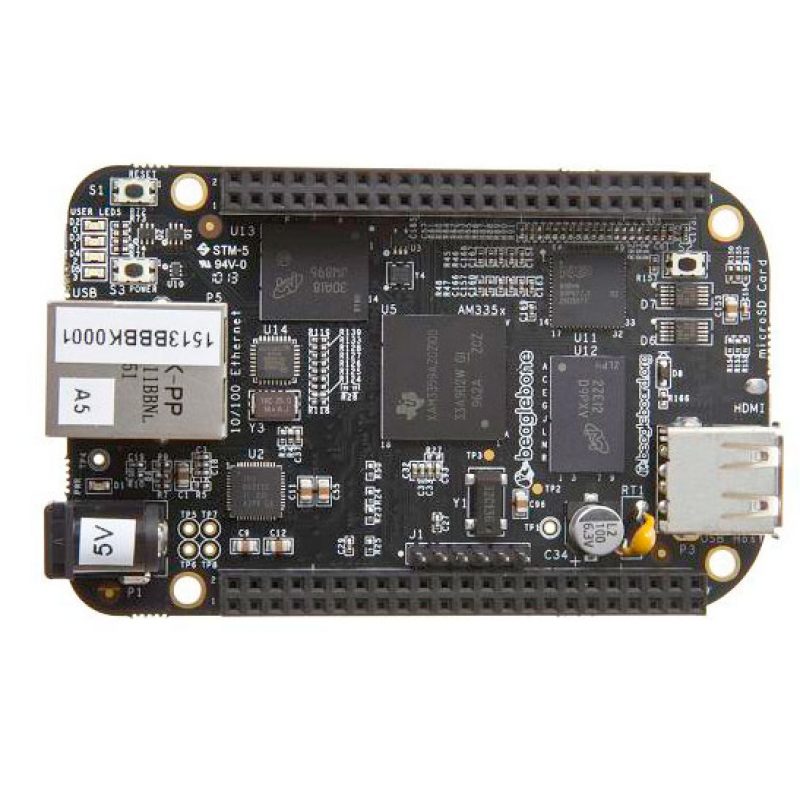

Beagleboard Black,Rev C
  • Beagleboard Black,Rev C
  • Beagleboard Black,Rev C

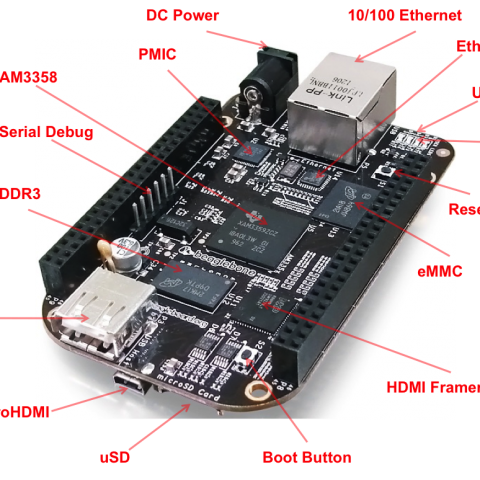

The BBONE-BLACK-4G is a BeagleBone Black development kit for developers and avid hobbyist. It is a lower cost, high expansion focused BeagleBoard using a low cost Sitara AM3358BZCZ100 Cortex A8 ARM processor from Texas Instruments. The board boots Linux in under 10sec and the user can get started on development in less than 5 min with just a single USB cable. It is similar to the Beaglebone, but with some features removed and some features added.
  • USB client for power and communications
  • 2 x 46 pin headers
  • USB host interface
  • Ethernet and HDMI interface
  • 512MB DDR3 RAM
  • 4GB 8bit eMMC on board flash storage
  • Optional on board 20 pin CTI JTAG, serial header
  • Most BeagleBone capes are cross compatible

Applications

Robotics, Motor Drive & Control, Communications & Networking, Hobby & Education

Contents

BB Black board, Mini USB to USB type A cable, Instruction card

Footnotes

Warranted against defects in materials & workmanship for period of 90 days from purchase, doesn’t cover problems such as improper use, modifications, exposure to water, excessive voltages, accidents.

Warnings

Do not apply voltage to any I/O pin when power is not supplied to the board. it will damage the processor.
Options

Beaglebone Black, Beaglebone Black Industrial, BB Blue, BB Wireless, Beagle Pocket
