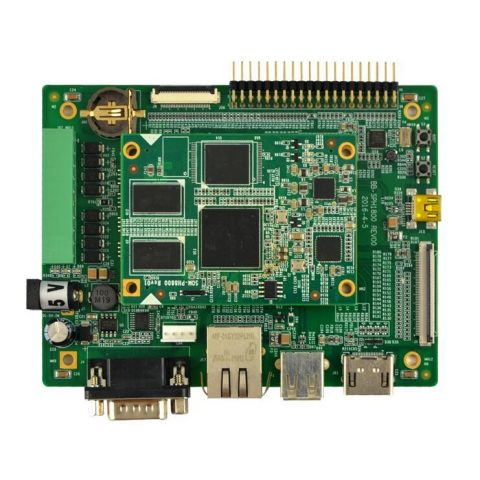

SBC-PH8800 For SOM-PH8800
  • SBC-PH8800 For SOM-PH8800
  • SBC-PH8800 For SOM-PH8800

SBC-PH8800 For SOM-PH8800

PricePlease Contact with
sales@emtop-tech.com
SKU: SBC-PH8800 Category:

Som-am437x-pm Basic Evaluation Kit (model: sbc-ph8800)

summary:

Som-am437x-pm single board computer (model: sbc-ph8800, hereinafter referred to as sbc-ph8800) is a basic development tool based on the core board som-am437x-pm (model: som-ph8800, hereinafter referred to as som-ph8800). It adopts the inbert custom ph180 standard form factor and signal definition. It is composed of the compact CPU core board module som-am437x-pm (Part No: som-ph8800) and the simplified bottom board Bb-sph1800. This kind of core system and the bottom extension separate structure design makes sbc-ph8800 not only be a development platform, but also can be directly used as the core functional components of terminal products, so as to shorten the customer R & D cycle, make electronic products put into production quickly and accelerate the time to market. Sbc-ph8800 provides a lot of peripheral resources, such as Gigabit Ethernet interface, USB interface, one channel 24bit LCD interface, one channel HDMI, TF storage expansion, RS232, can, RS485, etc. At the same time, sbc-

ph8800 has 40pin dual in-line pin, which can expand I2C, I2S, UART, MMC, Gigabit Ethernet and other signals.

SBC-PH8800

Core board system block diagram:

SBC-PH8800

 Core board system block diagram:

SBC-PH8800

Hardware features:


Electrical characteristics of core board som-ph8800:

  • Working temperature: 0 ~ 70 ° C (commercial grade), – 40 ~ 85 ° C (industrial grade)

  • Input voltage: 5V

  • Working humidity: 20% – 90% (no condensation)

  • Motherboard size: 70 mm × 50 mm

  • PCB specification: 8-layer board design

Processor features:

Som-ph8800 adopts Ti am437x high performance processor, which is based on ARM cortex ™ -A9 core design, which enhances the 3D graphics acceleration function, can achieve rich graphical user interface, also equipped with coprocessor for deterministic real-time processing, including industrial communication protocol EtherCAT, PROFIBUS, EnDat, etc. These devices support the system upgrade with lower performance ARM core, and provide update peripherals, including memory options such as qspi-nor and lpddr2. At the same time, it also has encryption acceleration function, which can realize safe startup to prevent cloning and illegal software.

  • 1 GHz TI AM437X ARM Cortex™-A9 32-Bit Reduced instruction microprocessor

  • NEON™ SIMD  Coprocessor and vector floating point (VFPv3) coprocessor

  • 32KB of Both L1 Instruction and Data Cache

  • 256KB of L2 Cache or L3 RAM

  • SGX530 Graphics Engine 3D Graphics acceleration

  • Programmable real time unit subsystem and industrial communication subsystem (pru-icss)

  • Real time clock (RTC) provides a clock reference for a separate power domain

 Onboard memory:

  • 1GB DDR3 SDRAM

  • 4GB eMMC Flash

  • 32KB EEPROM

  • 32MB QSPI Flash

floor BB-SPH1800


  Communication interface:

  • A DB9 RS232 communication serial port

  • 1 12 bit digital camera interface

  • One channel Gigabit Ethernet interface (RJ45 interface)

  • Two channel RS485 interface

  • One channel USB2.0 host high speed transmission interface

  • 1-way USB OTG interface

  • 1 TF card interface

  • One 40 pin expansion interface (expanding I2C, I2S, UART, MMC, Gigabit network, etc.)

Debug interface:

  • One onboard 4Pin UART debugging serial port

Audio and video interface:

  • 24bit true color LCD interface (including 4-wire touch screen interface)

  • HDMI interface

 Other interfaces and buttons:

  • Power interface (+ 5V round hole DC power interface)

  • Reset button, boot button

  • RTC real time clock

RoHS compliant

Bb-sph1800 electrical characteristics:

  • Working temperature: 0 ~ 70 ° C (commercial)

  • Power supply: 5V / 4A (power adapter)

  • Ambient humidity: 20% – 90% (no condensation)

  • Product size: 120 mm × 90 mm

  • PCB specification: 4-layer board design

Debug interface:

  • One onboard 4Pin UART debugging serial port

Audio and video interface:

  • 24bit true color LCD interface (including 4-wire touch screen interface)

  • HDMI Interface



Other interfaces and buttons:

  • Power interface (+ 5V round hole DC power interface)

  • Reset button, boot button

  • RTC real time clock

Software features:


OS Item Features Description
Linux Kernel Version 4.1.6
Drivers USB OTG, USB Host, Gigabit Ethernet, MMC/SD/TF, eMMC , EEPROM, CAN, RS485, Audio, LCD Controller (supports 4.3- and 7-inch LCD), RTC, HDMI, Camera, Touch driver, Button, UART, LED, SPI
File system UBIFS Default root file system used by debian

Application fields:


Portable data terminal

signal communication

Security system

Measuring instrument

Charging pile
