SBC-IMX8MM，NXP i.MX8M Mini EVK

Feature:

• Quad-core ARM Cortex-A53,Plus Cortex-M4,Reserve Jtag;
• On-board 2GB DDR4(1GB DDR4 Option),16GB eMMC, 8MB SPI FLASH;
• On-board AzureWave AW-CM256SM WiFi / Bluetooth;(Option)
• On-board Gigabit Ethernet PHY;
• On-board ROHM Power Management IC (PMIC);
• Yocto Linux BSP with source code;
• Comes with user manual, ready-made system;

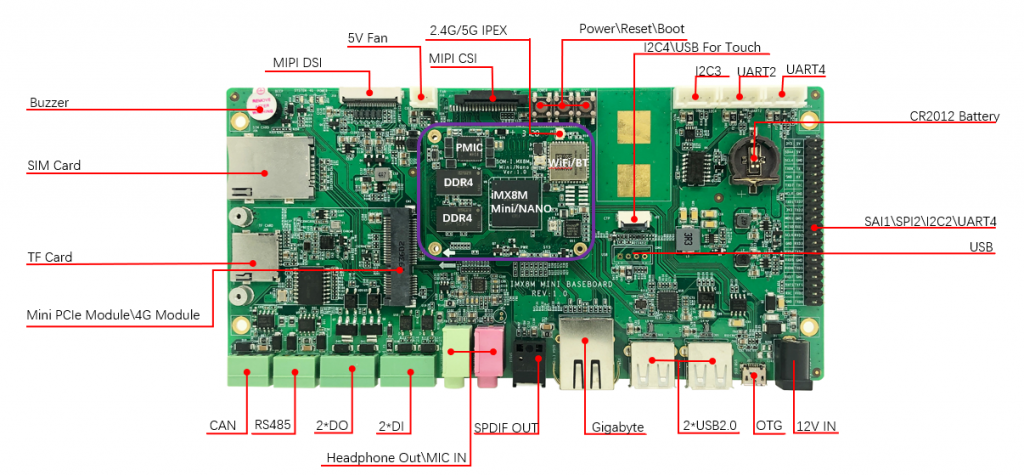

Interface：

• USB0 Host x 2
• USB OTG x 1
• 12V Power IN x 1
• Up to 77xGPIO (including SPI,I2C,PWM,UART,SAI, and SDIO)
• USB 2.0 Host (4 Pin Connector) x 1
• UART:
• UART2  (TTL, For Debug)
  UART3  (TTL, For User)
  UART4  (TTL, For User)
• I2C x 3
• USB Touch x 1
• MIPI-CSI-2 x 1
• Fan 5V port x 1
• MIPI-DSI x 1
• Buzzer x 1
  SIM Card x 1
• TF Card x 1
• Mini PCIE Interface x 1, For 4G module and PCIE module
• CAN Bus x 1
• RS485 Bus x 1
• Input Terminal x 2 PIN (With Isolation)
• Output Terminal x 2 PIN (With Isolation)
• Headphone Output/MIC In x 1
• SPDIF Out x 1
• 1xGigabit Ethernet on-board

SYSTEM ON MODULE:

• Size: 50x 40 x 3 mm
• PCB Parameter：8 layer design,  lead-free soldering process
• Weight: 12g

Packing List：

• SOM-IMX8M-MINI Or SOM-IMX8M-NANO
• Carrier Board
• Serial Cable
• Ethernet Cable
• Power Adapter

Options：

• MIPI LCD
• MIPI To HDMI/LVDS Adapter
• 7 INCH LVDS LCD
