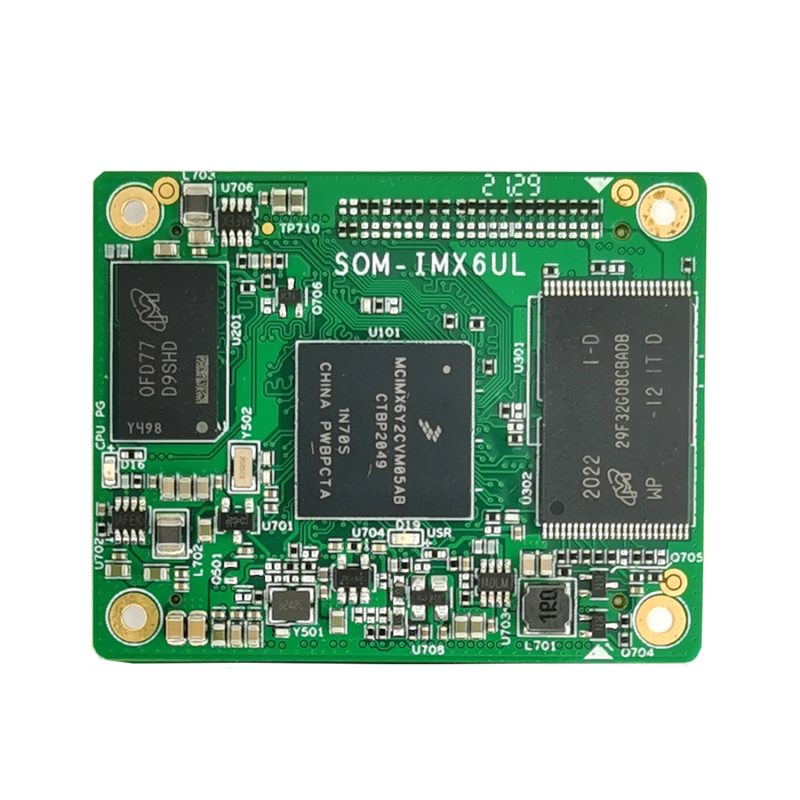

SOM-IMX6ULL support 8GB EMMC and 512MB Nand Flash.
| Feature | Details |
| SOM-i.MX6ULL | |
| Arm Cortex-A7 MPCore platform | Single ARM Cortex-A7 MPCore, including: • 32 KB L1 Instruction Cache • 32 KB L1 Data Cache • Media Processing Engine (MPE) Co-processor • General Interrupt Controller(GIC) • Global Timer • Snoop Control Unit • Target frequency of 528MHz |
| Audio | • S/PDIF Input and Output • SAI modules supporting I2S,AC97,TDM |
| On-chip memory | • Boot ROM (96KB) • Secure/non-secure RAM (32KB) |
| Memory and storage | |
| DDR SDRAM | • 512MB DDR3 SDRAM (16-bit bus width) • Maximum 1GB support • 800MHz maximum DDR clock |
| eMMC | • 4GB eMMC flash memory option • 8-bits MMC mode • 4~32GB storage option • Nand or eMMC + SPI option • 256MB ~ 4GB storage option |
| Expandable flash (MicroSD) | • Meets SD/SDIO 3.0 standard Runs at 4-bits • Supports system boot from SD card • Supports high-capacity SDXC card up to 2TB |
| Network & Wireless | |
| Ethernet | • 10/100 Mbps Ethernet Controller • Up to 2 MAC (6G2, 6G3 Only |
| Hardware Interface | |
| I/O connectivity | • 5x UART • 2x ENET • 1x SDIO • 1x JTAG • 10x GPIOs • 10x SNVS_TAMPER • 2x OTG |
| Display Interfaces | • 24bits RGB LCD |
| Camera | • 8Bit CSI |
| Item | Notes |
Device Name |
| Operating System | Linux4.1.15 | |
| ethernet | drivers/net/ethernet/freescale/fec_main.c | /sys/class/net/eth* |
| LCD driver | drivers/video/backlight/pwm_bl.c | /sys/class/backlight |
| LED driver | drivers/leds/leds-gpio.c | /sys/class/leds/ |
| USB driver | drivers/usb/chipidea/ci_hdrc_imx.c | /dev/sdx |
| USB 4G | drivers/usb/serial/ | /dev/ttyUSB* |
| USB Camera | drivers/media/usb/uvc/uvc_video.c | /dev/videox |
| SD Card | drivers/mmc/host/sdhci-esdhc-imx.c | /dev/block/mmcblk0pX |
| LCDFrameBuffer | drivers/video/fbdev/mxsfb.c | /dev/fb0 |
| ft5x06 Touch | drivers/input/touchsrcreen/edt-ft5x06.c | /dev/input/eventx |
| gt9xx Touch | drivers/input/touchscreen/ gt9xx.c | dev/input/eventx |
| RTC Clock | drivers/rtc/rtc-rx8010.c | /dev/rtcx |
| Seriel | drivers/tty/serial/imx.c | /dev/ttymxc* |
| Watch Dog | drivers/watchdog/imx2_wdt.c | /dev/watchdog |
| CAN | drivers/net/can/flexcan.c | /sys/class/net/can* |
| WIFI | drivers/net/wireless/realtek | wlan0 |
| Audio | sound/soc/ | /dev/snd/ |
| SPI | drivers/spi/spi-imx.c | /dev/spidev0.0 |
| mcp2515 | drivers/net/can/spi/mcp251x.c | /dev/canx |
| ADC | drivers/iio/adc/vf610_adc.c | iio:device0 |
