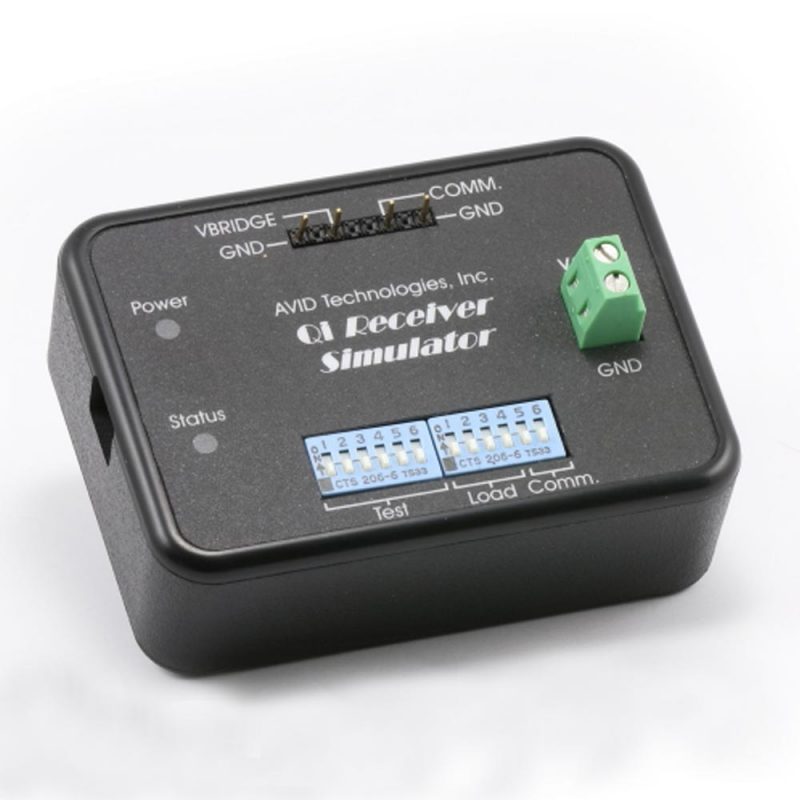

Qi Receiver Simulator v1.2
  • Qi Receiver Simulator v1.2

The Receiver Simulator provides a variety of test modes for assessing transmitter performance. 15 watt max output.


Description

The Receiver Simulator provides a variety of test modes for assessing transmitter performance. It is useful for system debugging, product demonstrations, Qi pre-compliance testing, production testing, and as a general purpose Qi receiver.

  • Fully functional Qi medium power (15 Watt) receiver

  • Stand alone, easy to use device in rugged enclosure

  • Selectable comm. tests and modulators

  • LEDs for device status

  • Test points for bridge voltage and digital comm. data

  • Selectable internal loads up to 2.0W in 0.25W steps

  • Screw terminals for connecting external loads up to 5.0W

  • Factory calibrated to improve received power accuracy

  • Over reports received power by +200 mW (for FOD)


产品简介:

Qi Receiver Simulator v1.2最大输出功率为15W,为评估发射器的性能提供了多种测试方法,如系统debug,产品特征,Qi标准产前测试,生产测试以及其他多场景,都能得到良好使用。



技术特性:

l  全功能的Qi中度电力(15W)接收器

l  独立易用,能在凹凸不平的封装中使用

l  可选择通讯测试及调制器

l  显示仪器状态的LED

l  给电桥电压和电子通讯数据提供测试点

l  可选的内部负荷可达2.0W

l  连接外部负荷的螺丝接线终端可达5.0W

l  工厂校准,提高接受电力的精准度

l  高于标准接受电力+200 mW(FOD)
