Qi Receiver Simulator v1.0

A Qi Receiver Simulator that can be placed on a Qi wireless charging transmitter and used to test the transmitter’s operation and performance. Useful for testing backward compatibility to v1.0.

Description

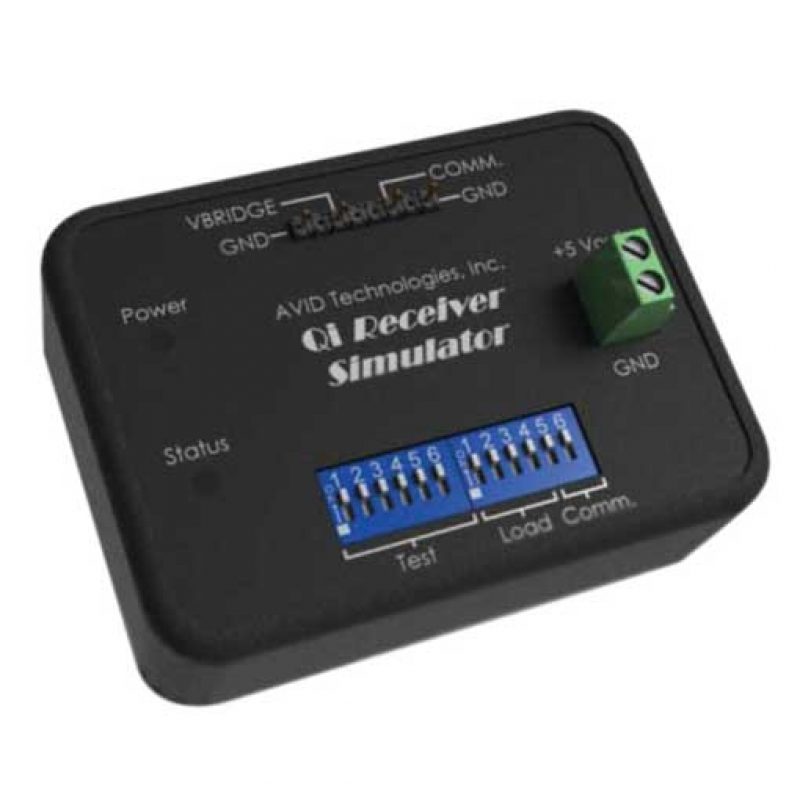

This is a Qi Receiver Simulator that can be placed on a Qi wireless charging transmitter and used to test the transmitter’s operation and performance. DIP switches on top of the Qi Receiver Simulator are used to select a number of different receiver operational modes as well as change the communication modulators and output load. This Qi Receiver Simulator is WPC v1.0 compatible.

• Stand alone, easy to use device

• Regulated 5VDC output

• Selectable comm. tests and modulators

• LEDs for device status

• Test points for bridge voltage and comm. modulator

• Selectable internal load

• Terminals for external load

产品简介:

         Qi 接收机模拟器 v1.0兼容WPC v1.0，可以被放置在Qi无线充电发射机上，用来测试该发射机的运行情况和性能。

在Qi接收机模拟器顶上的指拨开关可以用来选择多种不同的接受运行模式，也可以改变通讯调制器和输出负载。

技术特性：

• 独立易用

• 经调制的5V直流电源输出

• 可选择调节的通讯测试和调制器

• 显示仪器状态的LED

• 给电桥电压和电子通讯数据提供测试点

• 内部负荷可选择调节

• 给外部负荷提供终端
