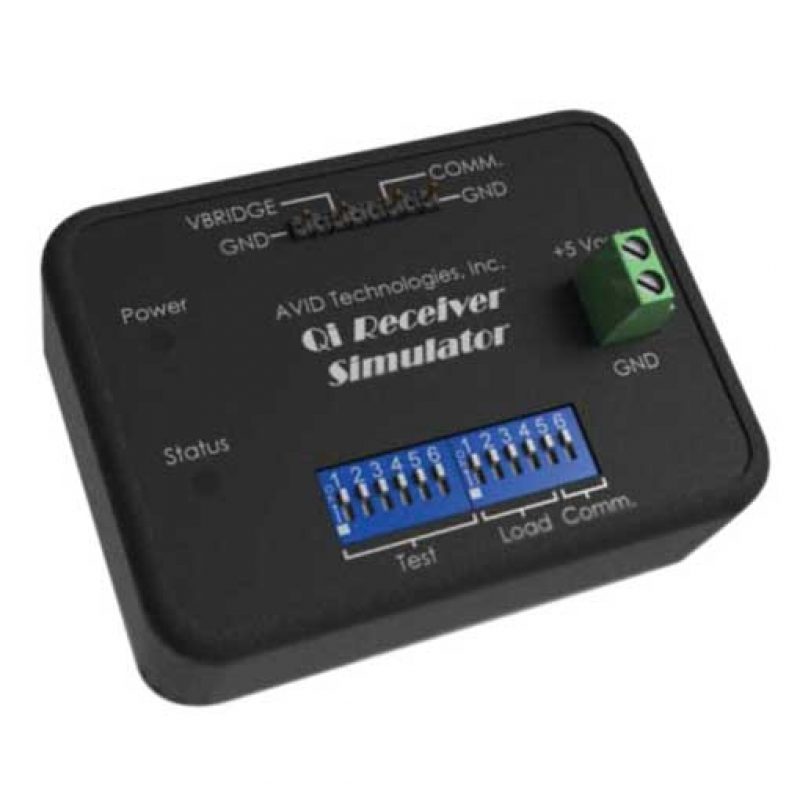

Qi Receiver Simulator v1.1
  • Qi Receiver Simulator v1.1

This Qi Receiver Simulator can be placed on a Qi wireless charging transmitter and used to test the transmitter’s operation and performance. 5 watt max output.


Description

This Qi Receiver Simulator can be placed on a Qi wireless charging transmitter and used to test the transmitter’s operation and performance. DIP switches on top of the Qi Receiver Simulator are used to select a number of different receiver operational modes as well as change the communication modulators and output load. This Qi Receiver Simulator is WPC v1.1 compatible.

  • Stand alone, easy to use device

  • Regulated 5VDC output

  • Selectable comm. tests and modulators

  • LEDs for device status

  • Test points for bridge voltage and comm. modulator

  • Selectable internal load

  • Terminals for external load

  • Factory calibrated for accurate received power measurements

  • Reports a proprietary 16-bit high resolution received power value


产品简介:

Qi 接收机模拟器 v1.1有5W的最大输出,可以被放置在Qi无线充电发射机上,用来测试该发射机的运行情况和性能。

技术特性:

l  独立易用

l  经调制的5V直流电源输出

l  可选择调节的通讯测试和调制器

l  显示仪器状态的LED

l  给电桥电压和电子通讯数据提供测试点

l  可选择调节的内部负荷

l  给外部负荷提供的终端

l  工厂校准,确保接受电力的精准度

l  专有16bit分辨率接受电力熟知的报告
