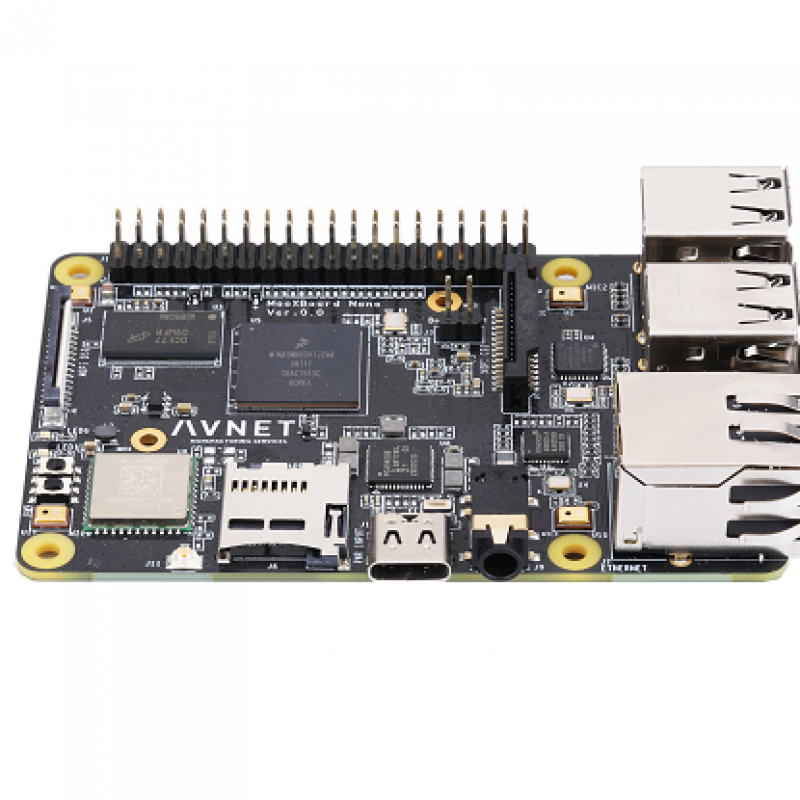

Maaxboard nano is an embedded single board computer for embedded consumer electronics and industrial applications. It is equipped with NXP advanced multi-core heterogeneous processor i.MX 8m nano. It has 4-core arm cortex-a53 and single core cortex-m7. GPU supports opengl3.1 and opencl1.2. It has advantages in video and image processing. In the compact design, maaxboard nano provides abundant peripheral interface resources, including Gigabit Ethernet interface, USB2.0 interface, mipi-dsi interface, mipi-csi interface, micro SD card, UART, GPIO, WiFi / BT, audio output (headset), etc.
Different from the previous two generations of maaxboard, the processor NXP i.MX 8m nano used by maaxboard nano is responsible for real-time processing, and the auxiliary core is upgraded from cortex-m4 to cortex-m7. The following figure shows the system architecture of maaxboard nano processor.
MaaXBoard Nano处理器 , i.MX 8M Nano System Diagram
Maaxboard nano can provide cost-effective integrated performance experience for intelligent interconnected energy-saving applications such as graphics, vision, voice control, intelligent sensing and general processing. Compatible with processor pins of maaxboard mini, it has strong scalability.
Like the maaxboard mini, the processor i.MX 8m nano of maaxboard nano is manufactured with mature and reliable 14lpc FinFET technology, which continues to bring performance and power efficiency to the mainstream embedded market.
Maaxboard nano has commercial and industrial level certification and is supported by NXP’s product life plan. It can be used in any general industrial and Internet of things applications.
The system block diagram of maaxboard nano is as follows:
System block diagram of maaxboard nano
Maaxboard nano interface diagram:
CPU multi-core processing:
Four cortex-a53 core platforms, operating at 1.5GHz per core
