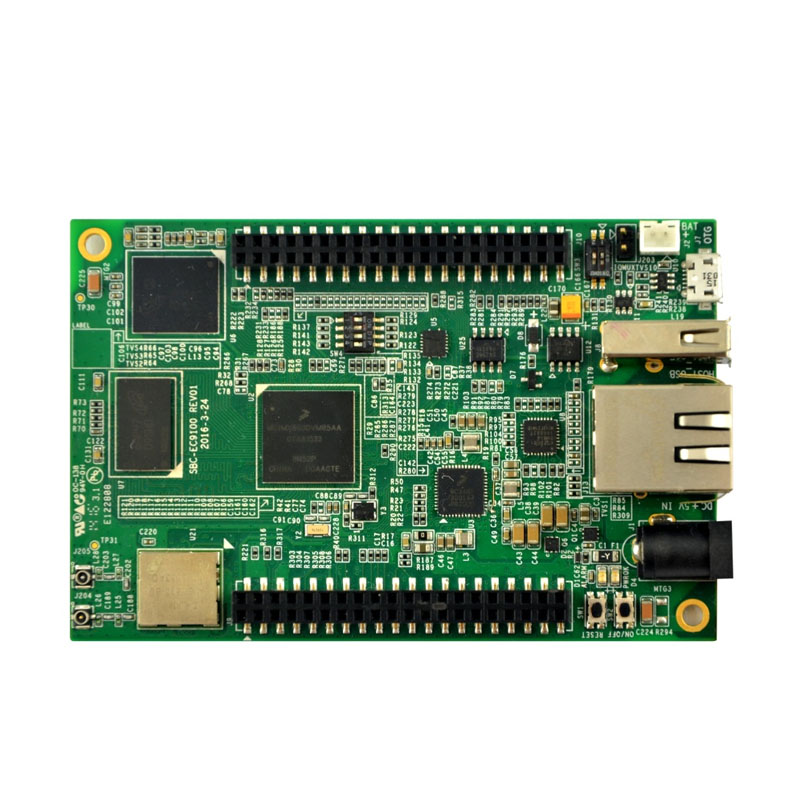

SBC-EC9100
  • SBC-EC9100

SBC-EC9100

PricePlease Contact with
sales@emtop-tech.com

Datasheet

SKU: SBC-EC9100 Categories: ,

Brief Introduction

SBC-EC9100 is low cost evaluation board that using i.MX6UL processor by EMTOP design. The system is oriented to the industrial embedded control field, such as medical instrument, video monitor, communication and so on. Which is industrial embedded products without too much UE for human-computer interaction.SBC-EC9100 provides a rich resource of peripheral interfaces, with one USB2.0 host high-speed interface, storage, 12 bit camera interface, one gigabit network interface one OTG interface, high capacity of TF card expansion, 24bit LCD, WIFI&BT interface (optional and default version does not provide), UART, CAN and RS485 interface.at the same time,in order to extend for consumer conveniently,there are some UART,I2C,SPI,ADC,PWM,RMIIc resources connect to two biserial40PIN socket.BTW, one of the 40 pin socket signal definition compatible with raspberry pi 40 pin definition.

  • CPU     NXP i.MX6 6UltraLite series MCIMX6G3CVCM05AA  ARM Cortex®-A7 core speed up to 528MHz
  • DDR     512MB DDR3L SDRAM
  • EMMC   4GB EMMC

Packing List

  • SBC-EC9100 evaluation board                  X1
  • 5V DC power adapter                          X1(optional)
  • 8GB TF card                          X1(optional)
  • 3 inches LCD or 7 inches LCD display screen   X1(optional)
  • UART line                                    X1(optional)
  • USB OTG line                                X1(optional)
  • Network line (direct links)                      X1(optional)

Product Features

Electrical Features:

  • Operating temperature:0~70℃          (commercialgrade)
  • Operating temperature:-40~85℃          (industrial grade)
  • Input voltage:5V
  • Operating humidity:20% ~ 80%   no condensation
  • Mainboard size:100 mm×65 mm
  • PCB specifications:thickness:1.6mm,6 layer design

Communication Interface

  • One8-bit digital camera interface—1x8bit CSI
  • One 100MB Ethernet network interface(RJ45) –1x100MB Ethernet
  • One RS485 interface—1xRS485
  • Two CAN interface—2xCAN
  • One USB2.0 Host high speed transmission interface—1xUSB2.0 High Speed
  • One USB OTG interface—1xUSB OTG
  • One TF card interface—1xTF Card
  • Two WIFI/BT module ant interface(4G/5G, optional)
  • Two 2*20 Pin expansion interface(extend I2C,UART,SPI、PWM、ADC singnal and so on)

Debugging Interface:

  • Debugging Uart use the Uart3 of CPU,the singnal from pin6 and pin8 J10,TTLvoltage .

Others Interface:

  • Power interface(DC-Jack power interface,2.1mm)
  • RTC battery interface(SIP2,2mm)
  • Power ON/OFFbutton, Reset button
  • LED indicator light(Power indicator light 、operating indicator light、overvolatage warning indicator light)

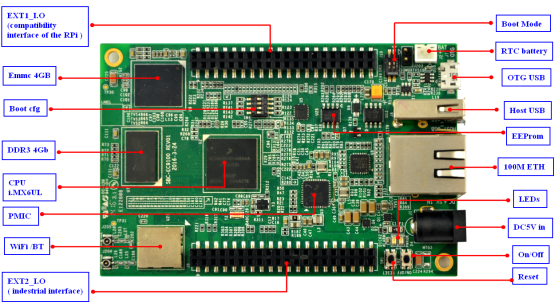

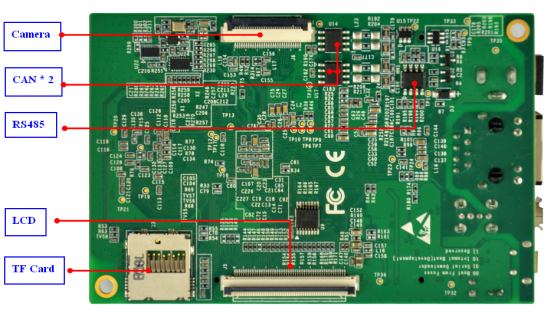

Detailed Breakdown Diagram

SBC-EC9100

















SBC-EC9100

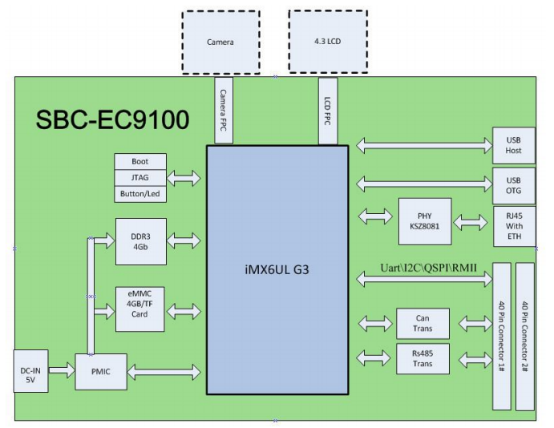

System BlockDiagram

SBC-EC9100

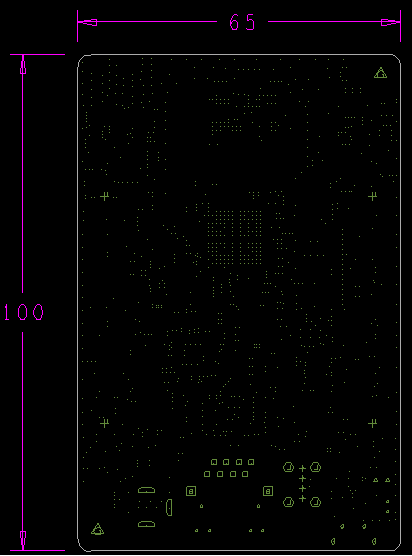

Product Dimensions

SBC-EC9100

Options

Onboard WIFI&BT, Onboard No WIFI&BT
