LCD8000-70T

LCD MODULE W/ CONVERSION BOARD, RIOT/XPLAINED

Product Overview

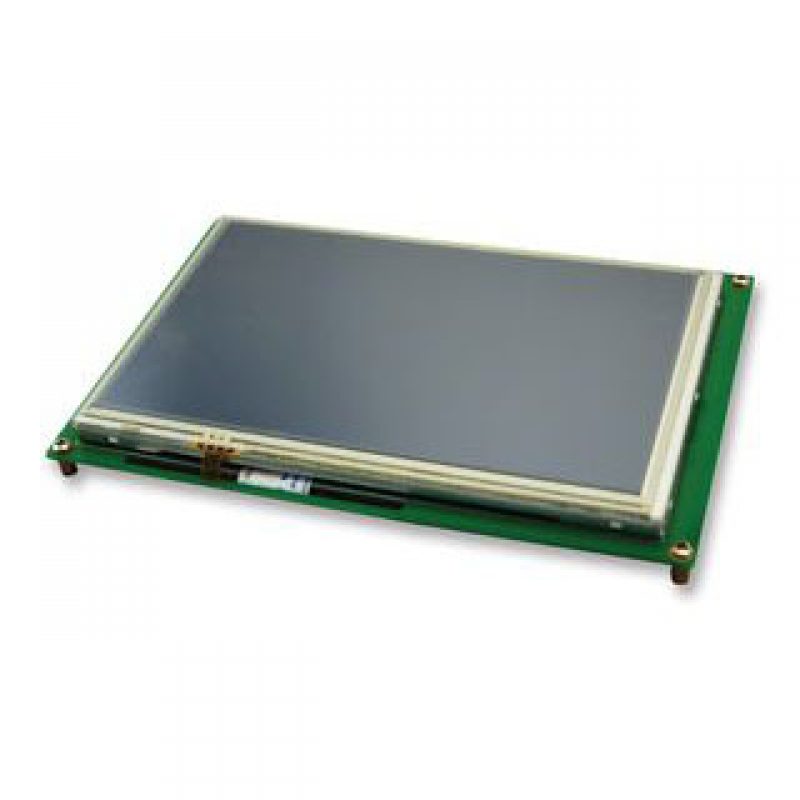

The LCD8000-70T-EX1 is a 7 inch TFT LCD module with a 16bit RGB parallel conversion board. The conversion board integrates a TSC2046 chip for touch function and a 3.3V regulation chip with capability to implement I2C control and PWM backlight control. It supports 16bit driving modes for LCD displays as well as connecting SPI 4 wire resistive touch screen. To connect the LCD module with RIoTboard, it needs the help of LCD-Ex expansion board..

• 7″ TFT LCD display

• 4 Wire resistive touchscreen

• 800 x 480 resolution

• Five User switches

• Two user defined LED’s

• 16bit display mode

• GPIO expansion

Applications

Imaging, Video & Vision

Contents

LCD8000-70T LCD Module with Conversion board TSC2046.

Footnotes

The blue stripe at the end of 50 pin FPC cable should be facing upward when connecting the LCD module to LCD-Ex expansion board. LCD8000-70T-EX1 do not support hot plugging.
