Material channels, laser steel mesh,
Senju Metal Industry solder paste
Fuji Pick & Place Machine, AOI, 3D X-Ray, FAI
TUV Rheinland Certificate，First Inspection,
Furnace Temperature Curve
Senior Managment Team of skilled workers
Accuracy: Printing
accuracy ±0.025mm
Screen frame size:
470*380-900*900mm
PCB size: 50*50-
610*600mm
PCB thickness: 0.4-5mm,
high precision and high
stability
Measurement principle: 3D
white light PSLM PMP
Bad detection types:
missing printing, less tin,
more tin, even tin,
Deviation, bad shape,
surface pollution
Maximum PCB board size:
M size :X330*Y250mm
L size: X510 * Y505mm
Can be mounted 01005,
0201, 0402 and other
devices
Can mount the next
generation of 03015 ultraprecision devices
The component mounting
capacity of a single module
is up to 37500CPH
The latest generation of
high-speed modules
imported from Japan
Pasting minimum package:
03015
Number of stickers:
35000CPH
PCB size: 48*48mm-
774*710mm
Chip precision: minimum
device precision
±0.034mm
IC chip precision
±0.025mm
Pasting minimum package:
01005 Chip/0.35mm BGA
Patch PCB thickness: 0.3-
6.5mm
PCB size: 50*50mm-
686*508mm
Chip precision: minimum
device precision ±0.04mm
IC chip precision ±0.03mm
Number of heating zones:
upper/lower 12 temperature
zones
Heating time: about 30
minutes
PCB board temperature
distribution deviation: <
1.5℃
Maximum width of PCB:
610mm
PCB size: 630*520mm
PCB thickness: 0.5-5.0mm
PCB component height:
upper :35mm
lower :110mm
PCB warping degree:
bending less than 3mm is
acceptable
Maximum sample size:
800*500mm
Number of PCT production
photos: 360
Number of PHOTOS
produced by ACT :1500-
1800
Resolution: 0.75um
minimum
--High quality and phenomenal reliability in electronic manufacturing.
--Customize your SOM or build your carrier board using EMTOP manufacturing services.
--Production throughput of nearly one million Printed Circuit Board Assemblies (PCBAs) at our partner facilities.

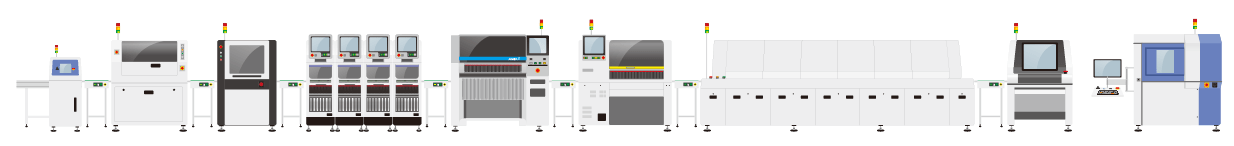

--Providing one-stop service including SMT, DIP soldering, assembly and testing with brand-new FUJI SMT mounters, 3D X-RAY, 3D SPI.
--Intelligent first piece detectors and various high-end equipment imported from Germany.
--Our assembly factories are dedicated to producing high-quality R&D prototypes as well as small & medium batch production services.
